Supported PDF features

Box Doc Gen lets you generate documents from a PDF template using several form field types. This article describes each supported field type and how to fill it when you generate a document.

Supported field types

Box Doc Gen supports the following field types in a PDF template:

Text fields
Radio buttons
Check boxes
Drop-downs

The examples in this article use an event registration form that includes all of these field types.

Support by generation method

Support for each field type depends on how you generate the document.

Field type	API	Automate	Box web app	Box for Salesforce
Text fields	Yes	Yes	Yes	No
Radio buttons	Yes	No	Yes	No
Check boxes	Yes	No	Yes	No
Drop-downs	Yes	No	Yes	No

PDF templates are not supported in the Box for Salesforce app.

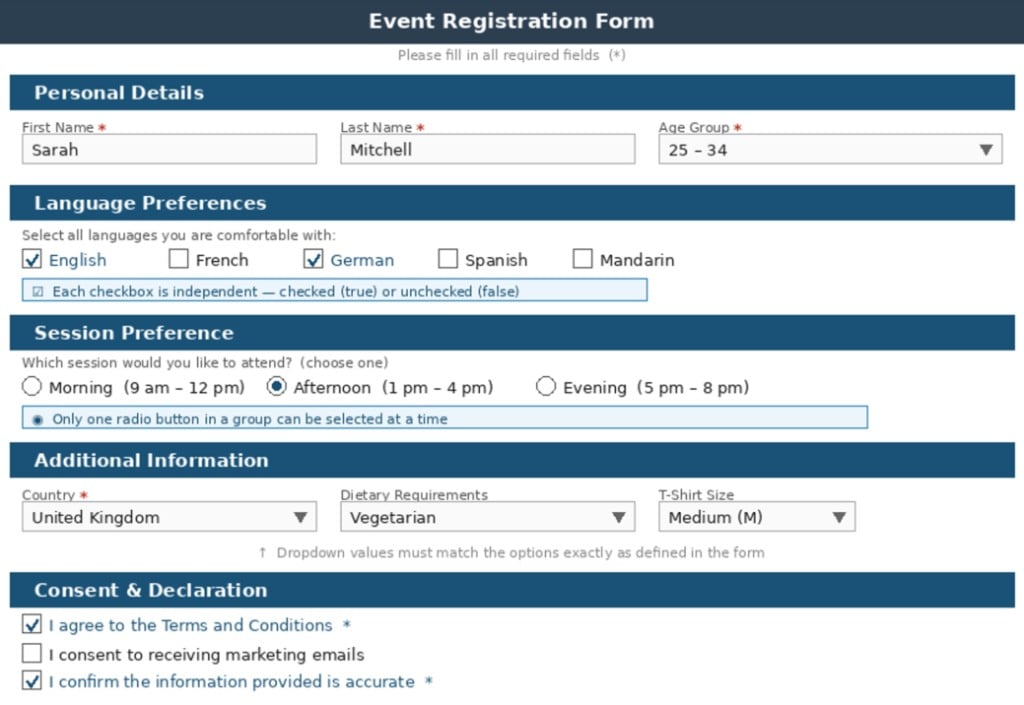

The following example displays a filled event registration form that includes each field type Box Doc Gen supports.

Text fields

Box Doc Gen replaces a text field in a PDF template with the value you provide. Pass the field name and its value as part of the document generation request. To generate a document using the API, pass the field name and its value in the JSON schema used in the API call. For example, to fill a text field named firstname:

{
  "firstname": "value"
}

Radio buttons

Radio buttons let you select exactly one option from a group. In the example form, Session Preference uses radio buttons: Morning, Afternoon, or Evening. Selecting Afternoon automatically deselects the others. How it works:

Provide the group name and the option you want selected. The value must match the option exactly as defined in the PDF, and it is case-sensitive.
One option from the group is selected.
The previously selected option, if any, is automatically deselected.

What does not work:

Selecting more than one option in the same group. Radio buttons are single-selection only.
Deselecting all options. If you omit the field, the template default stays selected, with no warning.
Approximate matches. For example, afternoon does not match Afternoon.

To generate a document using the API, pass the field name and its value in the JSON schema. For example, to select an option in the SessionPreference radio button group:

{
  "SessionPreference": "Afternoon"
}

The following table describes what happens when a value is invalid or missing.

Situation	What Box Doc Gen does	What you should do
Value matches an option	Selects the option, with no warning	No action needed
Field is missing from your input	Keeps the template default selected, with no warning	Always include required radio button fields explicitly
Value does not match any option	Raises an `UNABLE_TO_GET_TAG` warning and selects no option	Check the exact option values defined in the PDF

Check boxes

Check boxes let you select or clear one or more options in a PDF form. In the example form, Language Preferences uses check boxes: English and German are selected, while French, Spanish, and Mandarin are cleared. How it works:

Set each check box by name to true (selected) or false (cleared). Each check box is a separate field.
You can select or clear each check box independently.
You can select multiple check boxes at the same time, unlike radio buttons.
Setting a check box to false explicitly clears it, even if the template selects it by default.

What does not work:

Passing anything other than true or false. Values such as yes or 1 are not recognized.
Controlling multiple check boxes with a single field name. Each check box must have its own entry.

To generate a document using the API, pass the field name and its value in the JSON schema. For example, to select a check box named English and clear a check box named French:

{
  "English": true,
  "French": false
}

The following table describes what happens when a value is invalid or missing.

Situation	What Box Doc Gen does	What you should do
Value is correct	Selects or clears the check box, with no warning	No action needed
Field is missing from your input	Raises an `UNABLE_TO_GET_TAG` warning and keeps the check box in its template default state	Add the missing field to your input
Value is not `true` or `false`	Raises a warning and does not change the check box state	Use only `true` or `false`

Drop-downs

Box Doc Gen can fill an option in a drop-down menu in a generated document. A drop-down field lets you select a value from a fixed list. In the example form, Country, Dietary Requirements, and T-Shirt Size are drop-downs. You can only choose values already in the list; you cannot type a custom entry. How it works:

Provide the field name and the option you want selected. The value must match one of the available options exactly, and it is case-sensitive.
A single option from the list is selected.
If you do not supply a value, Box Doc Gen uses the template default, with no warning.

What does not work:

Selecting more than one option. Only single selection is supported.
Free-text entries that are not in the predefined list.
Approximate matches. For example, united kingdom does not match United Kingdom.

To generate a document using the API, pass the field name and its value in the JSON schema. For example, to fill values in drop-down menus:

{
  "Country": "United Kingdom",
  "DietaryRequirements": "Vegetarian",
  "TShirtSize": "Medium (M)"
}

The following table describes what happens when a value is invalid or missing.

Situation	What Box Doc Gen does	What you should do
Value matches an option	Selects the option, with no warning	No action needed
Field is missing from your input	Uses the template default, with no warning	Include all required drop-downs explicitly
Value is not in the list	Raises an `UNABLE_TO_GET_TAG` warning and may leave the field empty or use the default	Use the exact option text from the PDF field properties
